[ Adafruit ] Proto Shield for Arduino Unassembled Kit - Stackable - Version R3

[ Adafruit ] Proto Shield for Arduino Unassembled Kit - Stackable - Version R3 gallery

[ Adafruit ] Proto Shield for Arduino Unassembled Kit - Stackable - Version R3

USD 15.45 USD

SKU: WxI4br5Z

Condition: New

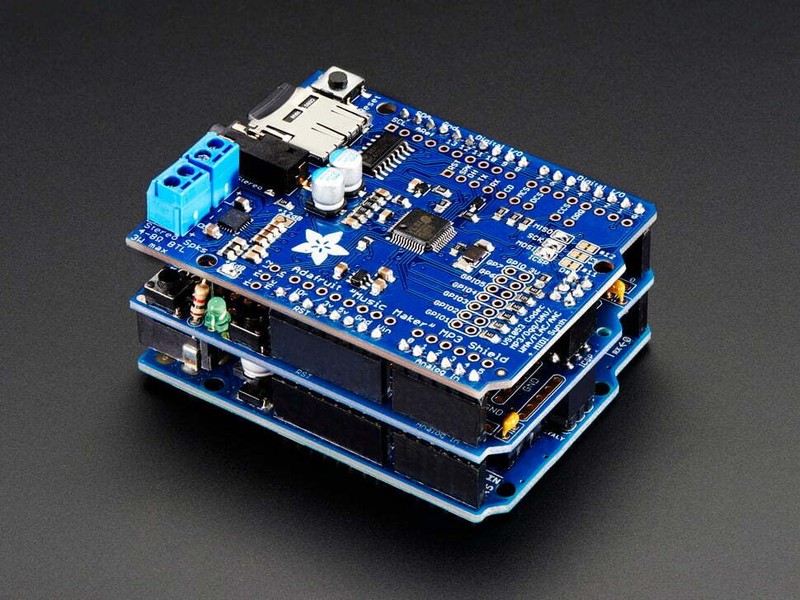

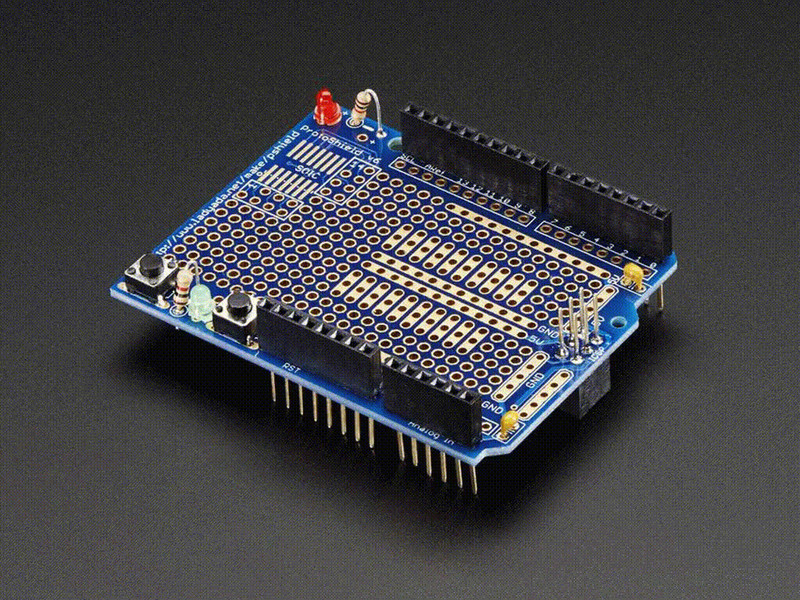

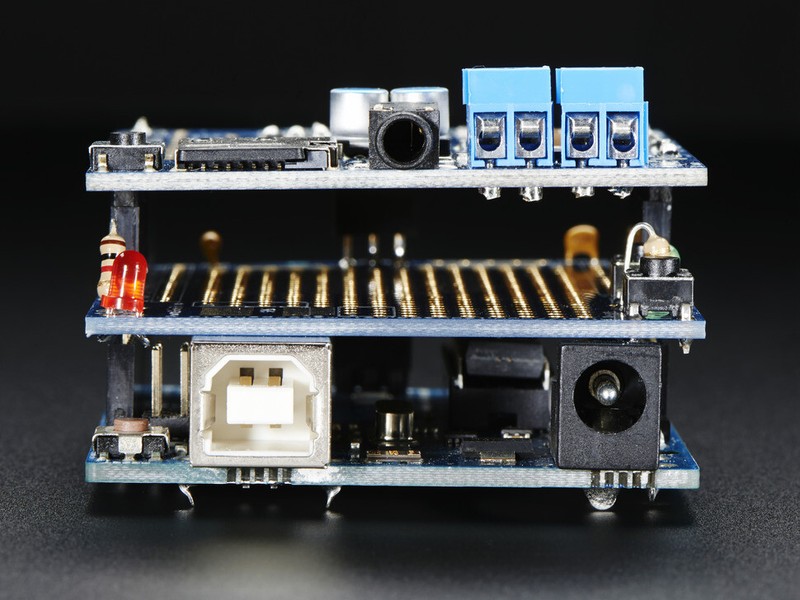

This prototyping shield is the best out there (well, we think so, at least), and now is even better with Version R3 - updated for the most compatibility with just about all the Arduinos! It works with UNO, Mega, Leonardo, NG, Diecimila, Duemilanove, and compatible Arduinos. Yun's and Arduino Ethernets have a chunky Ethernet jack that gets in the way of stacking, you can use the stacking headers included and it will work, just doesn't sit nice and flat. Check out these awesome specifications: It has a nice standard 0.1"x0.1" prototying grid with big padsComes with Stacking headers and plain header, choose whichever you want when soldering togetherA IC pattern for adding DIP ICs up to 20 pinsPower rails down the middle and sidesA reset button and an extra general use button2 3mm general use LEDs, red and green, as well as 2 matching resistorsA pass-thru ICSP stacking header so you can stack any kind of shield on top, and/or use an AVR programmerA surface-mount chip area for up to 14 SOIC size partsCompatible with tiny breadboardsEvery pin is brought out!Gold plated pads2 x 0.1uF capacitors on either side for extra power stability Comes as a kit of parts so you can choose how you want to configure your shield. However its very easy to assemble even for beginning solderers. Features:Fits regular Arduino headersDimensions (assembled): 69mm x 53mm x 13mm (2.7in x 2.1in x 0.5in)

Tags: 30 Days Does not apply Returns Accepted Seller Unassembled Kit unbranded

Categories: Science & Nature

Specifications

Return Shipping Will Be Paid By	Seller
All Returns Accepted	Returns Accepted
Item Must Be Returned Within	30 Days
Brand	Unbranded
MPN	Does not Apply

This prototyping shield is the best out there (well, we think so, at least), and now is even better with Version R3 – updated for the most compatibility with just about all the Arduinos! It works with UNO, Mega, Leonardo, NG, Diecimila, Duemilanove, and compatible Arduinos. Yun’s and Arduino Ethernets have a chunky Ethernet jack that gets in the way of stacking, you can use the stacking headers included and it will work, just doesn’t sit nice and flat. Check out these awesome specifications: It has a nice standard 0.1″x0.1″ prototying grid with big padsComes with Stacking headers and plain header, choose whichever you want when soldering togetherA IC pattern for adding DIP ICs up to 20 pinsPower rails down the middle and sidesA reset button and an extra general use button2 3mm general use LEDs, red and green, as well as 2 matching resistorsA pass-thru ICSP stacking header so you can stack any kind of shield on top, and/or use an AVR programmerA surface-mount chip area for up to 14 SOIC size partsCompatible with tiny breadboardsEvery pin is brought out!Gold plated pads2 x 0.1uF capacitors on either side for extra power stability Comes as a kit of parts so you can choose how you want to configure your shield. However its very easy to assemble even for beginning solderers. Features:Fits regular Arduino headersDimensions (assembled): 69mm x 53mm x 13mm (2.7in x 2.1in x 0.5in)
